Place of Origin:
China
Brand Name:
DINGYI
Certification:
ISO/CE
Model Number:
DW-1650

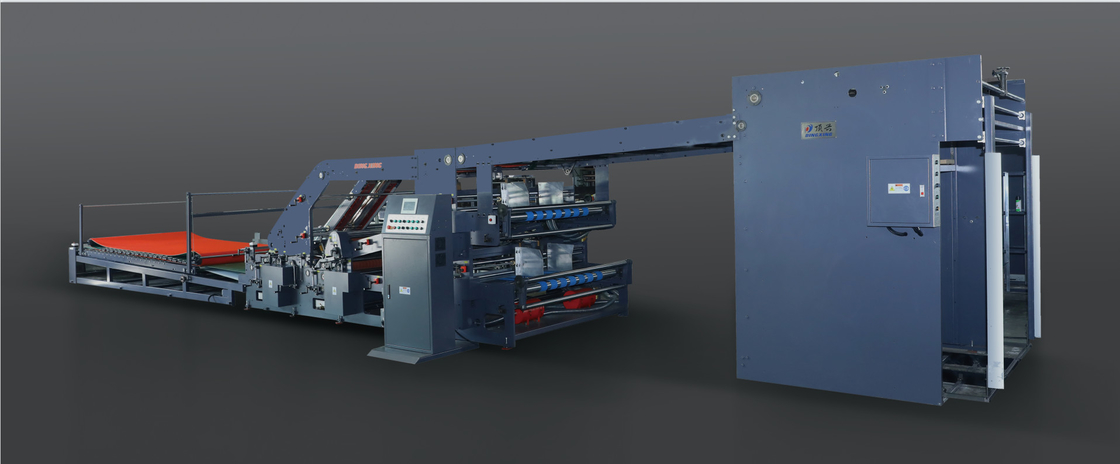

DW-1650 Double Wall Flute Laminator
Specifications:
Note: Specifications are subject to change without notice.
| Model | DW-1650 | |
| Max.Sheet Size(L*W, mm) | 1650*1450 | |
| Min.Sheet Size(L*W, mm) | 450*450 | |
| Thickness | Litho | 120~800gsm |
| Middle | 300-800gsm(single flute) | |
| Substrate |
300~800gsm (Up to 10mm Thick) A~N Single Layer/ 3/5Layers Corrugated Boards, Grey Paperboards and Cardboards |
|
| Accuracy | Within ±2 mm(Subject to Paper Quality and Specifications) | |
| Speed | 0 -5000sheets/hour(Subject to Paper Quality and Specifications) | |
| Power | AC~380V(30HP) | |
| Dimension: L*W*H(MM) | 1700*2650*2600 | |
| Weight(KG) | 9800 | |
Sources of Main Parts
| Name | Place of Origin or Materials |
|
Taiwan(Joint venture) |
| 2.Lifting motor | Taiwan(Joint venture) |
| 3. Decelerator | Taiwan(Joint venture) |
| 4.Glue Pump | Taiwan(Joint venture) |
| 5.Clutch & Brake | Nikka from Taiwan |
| 6.Electrical drive | Schneider from France, Fotek,Anly from Taiwan |
| 7.Belts | Japan |
| 9. Air Blower | Taiwan(Joint venture) |
| 10.Air pump | Becker |
| 11.Servo motor | Yaskawa |

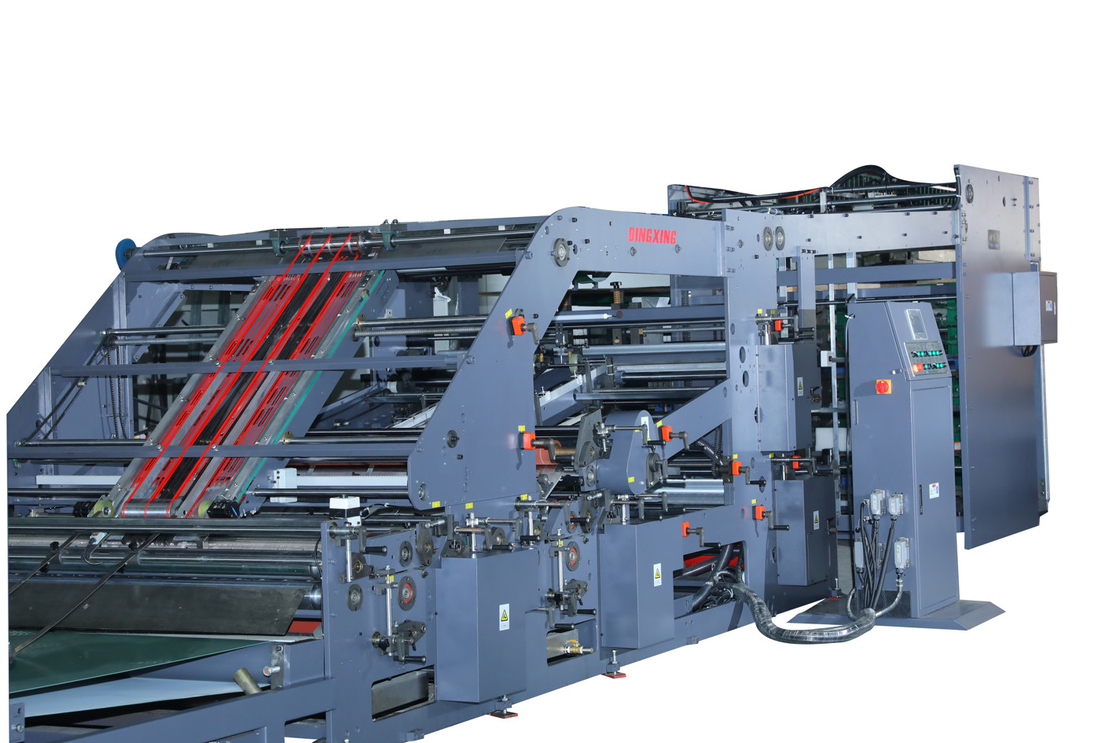

Automatic 5ply Flute Laminator is fortified model adopting two bottom feeders and one top feeder, especially suitable for laminatingtwo single flutes into 4 ply corrugated boards, also acting as a regular flute laminator to transfer thick and large -sized boards smoothly. Operation easily
Automatic Sply Flute Laminator is applied in broad scope of papers, bottom sheet from single layer/three/five layers corrugatedboards which can
be laminated easily and accurately, and total boards from 2 bottom feeders are maximum 8 layers . Servo aligning unit between top and bottom paper to guarantee better lamination precision.
